Zemic L6D8
د.إ0
Aluminium-alloy IP65 single point load cell
Colorless anodized
Suitable for pricing scales, bench scales, etc.
Maximum platform size: 35 x 35 cm
Zemic L6D8 Introduction
Zemic L6D8 load cell is one of the most suitable load cells for retail and store scales with a capacity of more than 50 kilograms. Due to its relatively small physical size, ease of installation and commissioning, acceptable quality and accuracy, and reasonable price, the L6D8 load cell is of interest to most manufacturers of weighing industries.
The L6D8 load cell is a single-point load cell that has been edge-balanced by the manufacturer and is defined in the accuracy class C3 and It has a maximum platform size of 35×35 centimeters and there is no weight difference on the sides.. This load cell is made of anodized aluminum alloy and the connection point of the strain gauges is filled with a special and strong resin and has an IP65 protection standard, which makes it suitable for use in industrial environments.
Installation
Of course, according to the figure below, this load cell can be used to measure the tension force instead of measuring the pressure force.
Loading
Zemic L6D8 Applications
All types of single point scales such as store and retail scales, piece counter scales, postal scales, airport scales, household scales, medical scales, laboratory scales, labeling scales, bar code reading scales and industrial scales.
Various types of single point belt scales such as conveyor belt weighing, roller weighing and production line controller weighing.

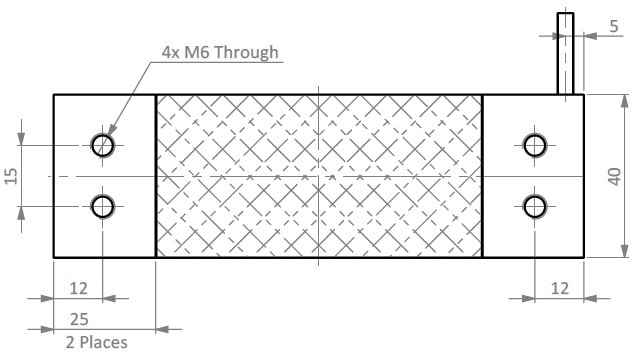

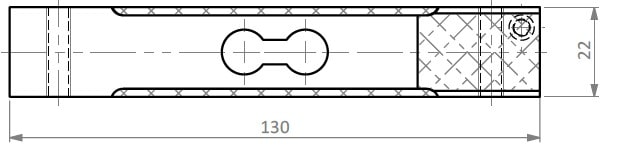

Zemic L6D8 Dimensions (mm)
Wiring
Zemic L6D8 Standards
| Brand |
Zemic |
|---|---|
| Type |
Single point |
| Elemental Material |
Aluminium Alloy |
| IP (Ingress Protection) |
IP65 |
| Capacity |
100 kg ,150 kg ,200 kg ,75 kg |
| Accuracy Class |
C3 ,C4 |
| Maximum Intervals |
3000 ,4000 |
| Minimum Verification Interval |
10000 ,16000 |
| Output Sensitivity |
2.0 ± 0.2 |
| Zero Balance |
1.0 |
| Input Resistance |
409 ± 6 |
| Output Resistance |
350 ± 3 |
| Excitation Voltage |
5 ~ 12 |
| Compensated Temperature |
-10 ~+ 40 |
| Safe Overload |
150 |
| Ultimate Overload |
300 |
| Dimensions (mm) |
130 x 40 x 22 |
| Maximum Platform Size |
35 x 35 (cm) |
Download Files
