Zemic BM3 Introduction

The Zemic BM3 load cell is one of the highest quality S-Type load cells and is mostly used in high-sensitivity tensile weighing applications. This load cell has a minimum verification interval of 12000 in class C3 and is very accurate. The BM3 load cell is a “S” type tension and compression load cell. The maximum output (Full Scale Output) of these load cells is adjusted by the manufacturer so that they have very little difference between each other, and in multi-load cell weighing systems, edg-balancing of this type of load cell is easily done by means of a junction box. This load cell is made of stainless steel and has an IP68 protection standard, which means it can be used in water. The BM3 load cell is ATEX certified and can be used in explosive and hazardous environments.

Installation

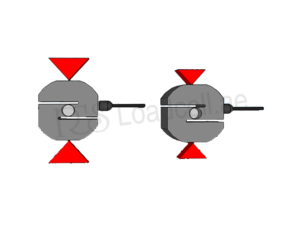

Loading

Zemic BM3 Applications

Various Types of hanging scales such as crane scales and hanging scales

Various Types of ceiling weighing, such as fixed and mobile ceiling crane weighing, elevator and hoist weighing, slaughterhouse and slaughterhouse ceiling weighing, and medical equipment ceiling weighing.

Measurement of compression or tension force such as force testing device

Various types of batching and mixers weighing for asphalt factories, concrete factories, food industries, pharmaceutical industries and petrochemical industries.

Zemic BM3 Dimensions (mm)

Wiring

Zemic BM3 Standards

Additional information

Brand	Zemic
Type	Universal
Elemental Material	Stainless Steel
IP (Ingress Protection)	IP68
Capacity	0.05 t , 0.1 t , 0.15 t , 0.2 t , 0.25 t , 0.5 t , 1 t , 2 t , 3 t , 4 t , 5 t , 6 t , 7.5 t
Accuracy Class	C3
Maximum Intervals	3000
Minimum Verification Interval	12000 , 7500
Output Sensitivity	2.0 ± 0.008 / 2.0 ± 0.004
Zero Balance	1.5
Input Resistance	350 ± 3
Output Resistance	350 ± 3
Excitation Voltage	5 ~ 12
Compensated Temperature	-10 ~+ 40
Safe Overload	150
Ultimate Overload	300
Dimensions (mm)	70 x 25 x 76.2 / 86 x 32 x 92
