Zemic BM24R
د.إ0
Stainless steel IP68 low profile load cell
Hermetically sealed
Suitable for hopper, platform and pallet scales
Integrated static overload protection up to 13t
Zemic BM24R Introduction
The Zemic BM24R is a high‑accuracy stainless‑steel compression load cell designed for demanding industrial weighing systems. Featuring a compact and low‑profile design, this advanced loadcell is available in OIML R60 accuracy classes from C3 up to C6, making it suitable for both standard and legal‑for‑trade applications. With hermetic IP68 sealing and excellent long‑term stability, the BM24R is widely used among professional load cells for reliable force measurement under compressive loads. Thanks to its robust construction and broad capacity range, it is often selected as a universal solution for precision compression weighing systems in harsh industrial environments.
Installation
Proper installation is critical to guarantee accuracy and mechanical protection:
1- Mount the load cell on a rigid, flat, and well‑aligned foundation.
2- Use approved mounting accessories such as rocker pins or self‑aligning feet to ensure proper load centering.
3- Ensure the load is introduced centrally to avoid side loading or bending moments.
4- Follow the tightening torque values specified in the Zemic datasheet to prevent housing deformation.
5- In multi‑cell systems, install all load cells at equal height to ensure uniform load distribution.
Loading
For optimal and repeatable measurement performance:

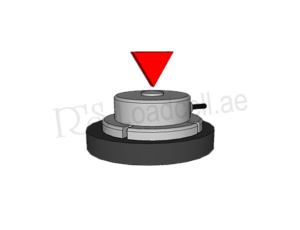

1- Apply force vertically in compression only, aligned with the center axis of the load cell.
2- Avoid shock loads, dynamic impacts, and lateral forces, even though the BM24R supports high safe and ultimate overload limits.
3- Ensure gradual loading during commissioning to allow the mechanical structure to settle correctly.
4- Perform zero setting and full calibration once the system is fully installed and stabilized.
5- Continuous operation within the rated capacity range ensures long‑term stability of the loadcell signal.
Applications
1- Industrial weighing systems using high‑precision zemic load cells
2- Platform scales, pallet scales, and heavy‑duty floor scales
3- Hopper, tank, and silo weighing under compressive force
4- High‑resolution and legal‑for‑trade weighing installations (up to OIML C6)
5- OEM and retrofit projects requiring compact compression load cell solutions
6- A reliable and universal loadcell for static compression‑based weighing applications
Measurement of pressure or tension force such as force testing device
Various types of batching and mixers weighing for asphalt factories, concrete factories, food industries, pharmaceutical industries and petrochemical industries.
Various types of weighing silos and tanks
Various kinds of multi-base scales and bascules, such as fixed and mobile floor scales, industrial scales, airport scales, medical scales, and animal scales
Various types of ceiling weighing, such as fixed and mobile ceiling crane weighing, elevator and hoist weighing, slaughterhouse and slaughterhouse ceiling weighing, and medical equipment ceiling weighing.
Zemic BM24R Dimensions (mm)
Wiring
The Zemic BM24R is supplied with a shielded industrial cable and is available in 4‑wire and 6‑wire configurations:
4‑wire connection
- Green — Excitation (+)
- Black — Excitation (–)
- White — Signal (+)
- Red — Signal (–)
6‑wire connection
- Green — Excitation (+)
- Black — Excitation (–)
- White — Signal (+)
- Red — Signal (–)
- Yellow — Sense (+)
- Blue — Sense (–)
The polyurethane jacket provides excellent resistance to moisture and industrial interference. The shield should be grounded at the indicator or junction box side only.
Zemic BM24R Standards
| Brand | Zemic |
|---|---|
| Type | Compression |
| Elemental Material | Stainless Steel |
| IP (Ingress Protection) | IP68 |
| Capacity | 0.06 t, 0.13 t, 0.25 t, 0.28 t, 0.5 t, 1 t, 10 t, 13 t, 2 t, 28 t, 3.5 t, 5 t, 60 t |
| Accuracy Class | C3, C4, C5, C6 |
| Maximum Intervals | 3000, 4000, 5000, 6000 |
| Minimum Verification Interval | 10000, 14000, 16000, 18000 |
| Output Sensitivity | 1.0±0.01 (0.06,0.13,0.28) / 1.75±0.2 (0.25) / 2.0±0.1 (0,5, 1,2, 3.5,5, 10,13, 28, 60) |
| Zero Balance | 1.0 |
| Input Resistance | 1260 ± 100 (0.06,0.13,0.28) / 1100 ± 100 (0.25, 0,5, 1, 2, 3.5, 5, 10) / 1200 ±100 (13) / 1075 ±100 (28) / 1350 ±200 (60) |
| Output Resistance | 1020 ±0.5 (0.06, 0.13, 0.28) / 1025 ±25 (0.25, 0,5, 1, 2, 3.5, 5, 10) / 1000 ±0.5 (13) / 930 ±0.5 (28) / 1175 ±0.5 (60) |
| Excitation Voltage | 5 ~ 12 |
| Compensated Temperature | -10 ~+ 40 |
| Safe Overload | 150 |
| Ultimate Overload | 300 |
| Dimensions (mm) | 87.75 x 55.5 x 22 |
