Celltec-PAL1
Click to enlarge
HomeProductsLoad CellsSingle Point - Platform Celltec PAL1
Previous product
Celltec-PA6
Celltec PA6 د.إ0
Back to products
Next product
Celltec-PAL1B
Celltec PAL1B د.إ0
Celltec

Celltec PAL1

د.إ0

Datasheet

Clear
Compare
Compare
Add to wishlist
SKU: N/A Category: Single Point - Platform
Share
  • Description
  • Additional information
  • Downloads
  • Reviews (0)
Description

Celltec load cell PAL1 is one of the most common single point load cells With 4 screws on its top and bottom. Due to its range of measurement, scale producers  use this load cell in commercial scales in range of 50kg to 1000 kg. PAL1 load cell has minimum load cell verification level of 10000 in “C3” class. Because of its great accuracy, weighing industry manufacturers rapidly use this load cell.

Celltec load cell PAL1 is a single point load cell. The producer calibrates it and determines its accuracy class as “C3”. With size of 60×60 centimeters it has no weight difference to its edges.

This load cell is made of aluminum alloy and resistant glue fills its meeting point in resin method. It also has IP65 certification which makes it usable in industrial environments.

Installation of Celltec PAL1:

PAL1 is a single point load cell and its installation routine is in the picture:

Installation-PAL1

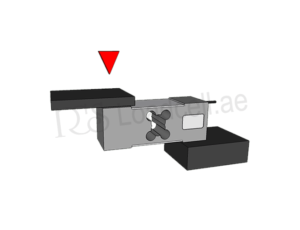

How to load Celltec PAL1:

Applications of Celltec PAL1:

Variety of single point scales like retail and general scales, piece counter scales, postal scales, airport scales. Also it has application in home scales, label scales, barcode reader scales and industrial scales.

Variety of conveyor weighing in single point form like weighing conveyor, weighing rollers, production line controllers and variety of packing and filling machines.

Variety of hoper weighing for food and chemical industry.

Physical form of Celltec PAL1:



Wiring of Celltec PAL1:

6Wire-2

Additional information
Brand

Celltec

Capacity

1.0t, 100kg, 150kg, 250kg, 300kg, 500kg, 50kg, 600kg

Class

C3, C4

Material

Alloy Steel

Options

Standard

Downloads

Downloads

Celltec-PAL1.pdf
