Celltec PAL3

Celltec load cell PAL3 is one one of the best  single point load cells With 4 screws on its right and left. Due to its range of measurement, scale producers  use this load cell in commercial scales in capacity range of 750 kg to 2000 kg. It has strong framework. Commercial scales and industries that include weight measurement use this load cell.

Celltec load cell PAL3 is a single point load cell. The producer calibrates it and determines its accuracy class as “C3”. With size of 120×120 centimeters it has no weight difference to its edges.

This load cell is made of aluminum alloy and resistant glue fills its meeting point in resin method. It also has IP65 certification which makes it usable in industrial environments.

Installation of Celltec PAL3:

PAL3 is a single point load cell and its installation routine is in the picture:

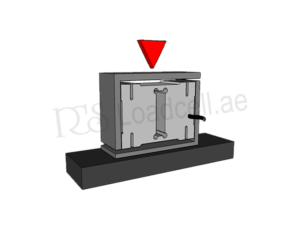

How to load Celltec PAL3:

Applications of Celltec PAL3:

Variety of single point scales like retail and general scales, piece counter scales, postal scales, airport scales. Also it has application in home scales, label scales, barcode reader scales and industrial scales.

Variety of conveyor weighing in single point form like weighing conveyor, weighing rollers, production line controllers and variety of packing and filling machines.

Variety of hoper weighing for food and chemical industry.

Physical form of Celltec PAL3:

Wiring of Celltec PAL3:
