Celltec USR2
د.إ0
50kg, 100kg, 150kg, 200kg, 250kg, 500kg, 1t, 2t, 3t, 4t, 5t, 6t, 7.5t
Hooper Weighing, Materials Testing, Crane Scale, Lever Conversation
Celltec USR2 Introduction
The Celltec USR2 load cell is a versatile tool commonly used for high-sensitivity tensile weighing applications. Let’s explore its features:
1-S-Type Design: The USR2 load cell is shaped like an “S,” making it suitable for both tension and compression measurements.
2-Precise Full Scale Output: The manufacturer carefully sets the maximum output of these load cells, ensuring minimal variation among them. This feature simplifies cornering in multi-load cell weighing systems using a junction box.
3-Stainless Steel Construction: Crafted from durable stainless steel, the USR2 load cell withstands demanding conditions.
4-IP68 Protection Rating: Dustproof and waterproof, it can be used in water-related environments.
Specifications:
1-Capacity: Ranges from 500 kg to 100 t
2-Accuracy: 0.02%
3-Overload Protection: Up to 150%
4-Operating Temperature: -40°C to +100°C
5-Protection Class: IP68
Installation
Loading
Applications
Various Types of hanging scales such as crane scales and hanging scales
Various Types of ceiling weighing, such as fixed and mobile ceiling crane weighing, elevator and hoist weighing, slaughterhouse and slaughterhouse ceiling weighing, and medical equipment ceiling weighing.
Measurement of compression or tension force such as force testing device
Various types of batching and mixers weighing for asphalt factories, concrete factories, food industries, pharmaceutical industries and petrochemical industries.
Celltec USR2 Dimensions (mm)

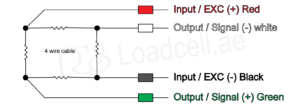

Wiring
| Brand |
Celltec |
|---|---|
| Capacity |
1.0t ,2.0t ,3.0t ,4.0t ,5.0t ,500kg ,6.0t ,7.5t |
| IP (Ingress Protection) |
IP68 |
| Class |
C3 |
| Elemental Material |
Stainless Steel |
| Maximum Intervals |
3000 |
| Minimum Verification Interval |
10000 |
| Output Sensitivity |
2.0 ± 0.01 |
| Zero Balance |
1.5 |
| Input Resistance |
350 ± 3.5 |
| Output Resistance |
350 ± 3.5 |
| Excitation Voltage |
5 ~ 15 |
| Compensated Temperature |
-10 ~+ 40 |
| Safe Overload |
150 |
| Ultimate Overload |
250 |
