Zemic H10J Introduction

The Zemic H10J load cell is one of the most widely used load cells on trucks in Europe. It is designed for weighing heavy vehicles in motion and is very safe. It is usually mounted on the chassis of the vehicle. The H10J load cell is made of nickel plated alloy steel and has an IP67 standard, making it washable.

Installation

Loading

Applications

Weighing on moving vehicles

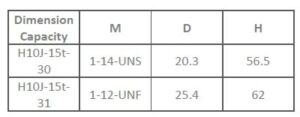

Zemic H10J Dimensions (mm)

Wiring

Zemic H10J Standards

Additional information

Brand	Zemic
Type	Other
Elemental Material	Nickel plated steel
IP (Ingress Protection)	IP67
Capacity	15 t
Accuracy Class	G10
Maximum Intervals	100
Minimum Verification Interval	700
Output Sensitivity	0.500 ± 0.05 / 0.450 ± 0.05
Zero Balance	2.0
Input Resistance	387 ± 25
Output Resistance	350 ± 3.5
Excitation Voltage	5 ~ 12
Compensated Temperature	-10 ~+ 40
Safe Overload	120
Ultimate Overload	150
Dimensions (mm)	327 x 63.5 x 56.5/62
