Zemic L6W
د.إ0
Aluminium-alloy IP65 single point
Colorless anodized
Suitable for single and double load cell structured platform scales
Maximum platform size:
for 50kg – 200kg: 600 x 600 mm
for 250kg – 635kg: 600 x 800 mm
Zemic L6W Introduction
The Zemic L6W load cell is a single-point load cell with four screws at the top and bottom and a strong and sturdy body that is used for various commercial scales and weighing industries.
The L6W load cell is a single-point load cell that has been edge-balanced by the manufacturing company and is in the defined accuracy class C3 and with maximum platform size of 60 x 60 cm without any differences on the sides.This load cell is made of anodized aluminum alloy, the place where the strain gauges are connected is filled with a special and strong resin, and it has an IP65 protection standard, which makes it suitable for use in industrial environments.
Installation
Loading
Zemic L6W Applications
All types of single point scales such as store and retail scales, piece counter scales, postal scales, airport scales, household scales, medical scales, laboratory scales, labeling scales, bar code reading scales and industrial scales.
Various types of Hopper weighing for food and chemical industries
Various types of single point belt scales such as conveyor belt weighing, roller weighing and production line controller weighing.

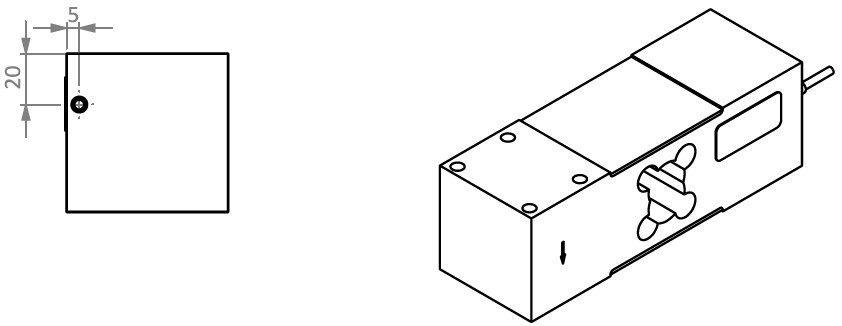

Zemic L6W Dimensions (mm)
Wiring
Zemic L6W Standards
| Brand |
Zemic |
|---|---|
| Type |
Single point |
| Elemental Material |
Aluminium Alloy |
| IP (Ingress Protection) |
IP65 |
| Capacity |
100 kg ,150 kg ,200 kg ,250 kg ,300 kg ,50 kg ,500 kg ,635 kg ,75 kg |
| Accuracy Class |
C3 |
| Maximum Intervals |
3000 |
| Minimum Verification Interval |
10000 ,7000 |
| Output Sensitivity |
2.0 ± 0.2 |
| Zero Balance |
1.0 |
| Input Resistance |
406 ± 6 |
| Output Resistance |
350 ± 3 |
| Excitation Voltage |
5 ~ 12 |
| Compensated Temperature |
-10 ~+ 40 |
| Safe Overload |
120 |
| Ultimate Overload |
150 |
| Dimensions (mm) |
188 x 63.5 x 62.3 |
| Maximum Platform Size |
60×60 (50kg~200kg) / 60×80 (250kg~635kg) |
