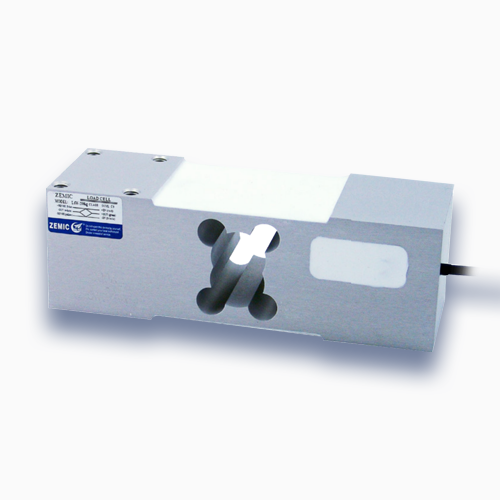

Zemic L6J1
د.إ0
Aluminium-alloy IP65 single point load cell
Colourless anodized
Suitable for counting scales, balances, pricing scales etc
Maximum platform size: 20 x 20 cm
Zemic L6J1 Introduction
The Zemic L6J1 load cell is a miniature load cell due to its small physical size, making it ideal for use in gram scales. It has a capacity range of 300 grams to 3 kilograms. The L6J1 is a single-point load cell that has been edge-balanced by the manufacturer and is classified as C3 accuracy class. It has a maximum platform size of 20×20 centimeters and there is no weight difference on the sides.
This load cell is made of anodized aluminum alloy and the strain gauges are filled with a special, strong resin adhesive. It has an IP65 protection standard, making it suitable for use in industrial environments.
Key Features:
1- Miniature size
2- Capacity range of 300 grams to 3 kilograms
3- Single-point load cell
4- C3 accuracy class
5- Edge-balanced
6- Maximum platform size of 20×20 centimeters
7- No weight difference on the sides
8- Made of anodized aluminum alloy
9- Strain gauges filled with special, strong resin adhesive
10- IP65 protection Standard
Installation
Loading
Zemic L6J1 Applications
All types of single point scales such as store and retail scales, piece counter scales, postal scales, airport scales, household scales, medical scales, laboratory scales, labeling scales, bar code reading scales and industrial scales.
Zemic L6J1 Dimensions (mm)
Wiring
Zemic L6J1 Standards
| Brand |
Zemic |
|---|---|
| Type |
Single Point |
| Elemental Material |
Aluminium Alloy |
| IP (Ingress Protection) |
IP65 |
| Capacity |
0.3 kg ,0.6 kg ,1 kg ,2 kg ,3 kg |
| Accuracy Class |
C2 |
| Maximum Intervals |
2000 |
| Minimum Verification Interval |
5000 |
| Output Sensitivity |
0.9 ± 0.1 |
| Zero Balance |
-0.020 – +0.040 |
| Input Resistance |
406 ± 6 |
| Output Resistance |
350 ± 3 |
| Excitation Voltage |
5~10 |
| Compensated Temperature |
-10 ~+ 40 |
| Safe Overload |
120 |
| Ultimate Overload |
150 |
| Dimensions (mm) |
70 x 12 x 22 |
| Maximum Platform Size |
20 x 20 (cm) |
