Zemic L6D Introduction

The Zemic L6D load cell and similar load cells from other brands are one of the most widely used load cells in the world, with the highest consumption in retail and grocery scales. The L6D is popular with most weighing industry manufacturers due to its relatively small size, ease of installation and commissioning, acceptable quality and accuracy, and very reasonable price.
The L6D load cell is a single point load cell that has been edge-balanced by the manufacturer and is defined in accuracy class C3 and it has a maximum platform size of 25×35 centimeters and there is no weight difference on the sides.. This load cell is made of anodized aluminum alloy and the strain gauge connection point is filled with a special strong resin and has an IP65 protection standard.

Installation

Of course, according to the figure below, this load cell can be used to measure the tension force instead of measuring the pressure force.

Loading

Zemic L6D Applications

All types of single point scales such as store and retail scales, piece counter scales, postal scales, airport scales, household scales, medical scales, laboratory scales, labeling scales, bar code reading scales and industrial scales.

Various types of single point belt scales such as conveyor belt weighing, roller weighing and production line controller weighing.

Weighing types of packing and filling machines.

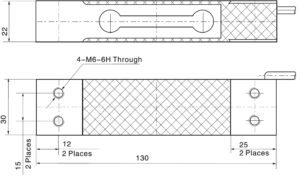

Zemic L6D Dimensions (mm)

Wiring

Zemic L6D Standards

Additional information

Brand	Zemic
Type	Single point
Elemental Material	Aluminium Alloy
IP (Ingress Protection)	IP65
Capacity	10 kg , 15 kg , 20 kg , 3 kg , 30 kg , 35 kg , 40 kg , 5 kg , 50 kg , 6 kg , 8 kg
Accuracy Class	C3 , C4 , C5
Maximum Intervals	3000 , 4000 , 5000
Minimum Verification Interval	10000 , 15000 , 20000
Output Sensitivity	2.0 ± 0.2
Zero Balance	2.0
Input Resistance	406 ± 6
Output Resistance	350 ± 3
Excitation Voltage	5 ~ 12
Compensated Temperature	-10 ~+ 40
Safe Overload	150
Ultimate Overload	300
Dimensions (mm)	130 x 30 x 22
Maximum Platform Size	25 x 35 (cm)
