Zemic H2F
د.إ0
Nickel plated alloy steel IP67 spoke type load cell
High accuracy
Suitable for hanging, hopper and other electronic weighing devices
Zemic H2F Introduction
The Zemic H2F compression load cell is a high‑capacity industrial weighing sensor designed for accurate force measurement under compressive loading conditions. Manufactured from nickel‑plated alloy steel and protected to IP67, the H2F is engineered to perform reliably in harsh industrial environments. Its compact spoke‑type design allows efficient force transmission while maintaining excellent accuracy and mechanical stability. The Zemic H2F compression load cell is well suited for applications where durability, precision, and long‑term performance are required.
Installation
Correct installation is essential to achieve accurate compression measurement and long service life:
1- Install the loadcell on a flat, rigid, and well‑aligned mounting surface.
2- Ensure that the applied load is transferred vertically along the load axis.
3- Use appropriate mounting bolts and observe the recommended tightening torque.
4- Avoid side loading, bending moments, or uneven force distribution.
5- Mechanical stops or overload protection are recommended in high‑capacity applications.
Proper mounting guarantees stable operation and protects the load cell from mechanical damage.
Loading
The Zemic H2F provides stable and repeatable performance for compression weighing systems:
1- High accuracy with OIML certified performance (up to C3)
2- Low creep and minimal hysteresis under sustained compressive load
3- Stable output sensitivity of 2.0 mV/V
4- High safe and ultimate overload ratings for industrial safety
5- Wide compensated and operating temperature ranges
These performance characteristics make the H2F suitable for demanding static compression weighing installations.
Applications
1- Compression weighing systems
2- Hopper and silo weighing under compressive load
3- Tank and vessel weighing
4- Heavy‑duty industrial force measurement
5- Process weighing systems using multiple loadcells
A robust and precise compression load cell designed for reliable performance in high‑capacity industrial environments.
Measurement of pressure or tension force such as force testing device
Various types of batching and mixers weighing for asphalt factories, concrete factories, food industries, pharmaceutical industries and petrochemical industries.
Various types of weighing silos and tanks
Zemic H2F Dimensions (mm)
Wiring
The Zemic H2F compression load cell is supplied with a shielded industrial cable and supports a 6‑wire strain gauge connection, ensuring precise signal transmission over long distances.

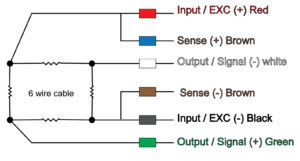

6‑Wire Connection
Red — Excitation (+)
Yellow — Excitation (–)
Blue — Signal (+)
White — Signal (–)
Brown — Sense (+)
Black — Sense (–)
The cable shield is not connected to the measuring element and should be grounded at the indicator side only to minimize electrical noise.
Zemic H2F Standards
| Brand | Zemic |
|---|---|
| Type | Compression |
| Elemental Material | Nickel plated steel |
| IP (Ingress Protection) | IP67 |
| Capacity | 1 t, 10 t, 15 t, 2 t, 20 t, 3 t, 30 t, 5 t, 50 t |
| Accuracy Class | C1, C2, C3 |
| Maximum Intervals | 1000, 2000, 3000 |
| Minimum Verification Interval | 3000, 5000, 7500 |
| Output Sensitivity | 2.0 ± 0.01 |
| Zero Balance | 1.0 |
| Input Resistance | 770 ± 30 |
| Output Resistance | 700 ± 7 |
| Excitation Voltage | 5 ~ 12 |
| Compensated Temperature | -10 ~+ 40 |
| Safe Overload | 150 |
| Ultimate Overload | 300 |
| Dimensions (mm) | 115 x 43 / 120 x 45 / 128 x 46 / 160 x 63 / 194 x 68 / 220 x 73 / 230 x 78 / 264 x 90 |
