Revere-ASC
Click to enlarge
Home Products Load Cells Compression - Ring Type Revere ASC
Tedea-220
Tedea 220 د.إ0
Back to products
Zemic-H8C
Zemic H8C د.إ0
Revere Transducers

Revere ASC

د.إ0

Datasheet

Capacities: 30, 40, 50, and 60 t

Self-aligning, stainless steel single column

Hermetically sealed, IP66/IP68/IP69K

Type approved up to OIML R60 C6 and NTEP class IIIL 10000 divisions

Built-in surge protection tubes (GDTs)

Current calibration output (SC) ensures easy and accurate parallel connection of multiple load cells

Clear
Compare
Compare
Add to wishlist
Compare
SKU: N/A Category: Compression - Ring Type
Share:
  • Description
  • Additional information
  • Downloads
  • Reviews (0)
Description

Revere load cell ASC is a compression load cell. Revere ASC is noteworthy to fully electronic scale manufacturers.

The producer adjusts full scale output of ASC. It makes the load cells to in a way which they are not  much different to each other. In multi load cell weighing systems, calibration of ASC is easily done through the junction box.

The material  of this load cell is stainless steel. Revere ASC  has IP68 which makes it usable under water. It also has ATEX which makes it usable in explosive environments.

Installation of Revere ASC:

There are many ways to install this load cell. This is the most popular way to install Revere ASC:

Installation-ACS

How to load Revere ASC:

ASC-Upload

Application of Revere ASC:

Variety of heavy weighbridges like trailer scales, trunk scales and train scales.

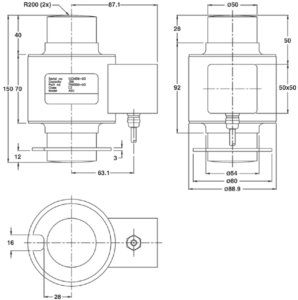

Physical form of Revere ASC:

Revere-ASC-Schem

Wiring of Revere ASC:

4Wire-V2

Revere ASC standards:

NTEP    OIML    ATEX    CE    FM    IP65

Additional information
Brand

Revere Transducers

Capacity

30t, 40t, 50t, 60t

Class

C3, C6, CC

Material

Stainless Steel

Options

Ex, Standard

Downloads

Downloads

Revere-ASC.pdf
