Celltec USR1 Datasheet

Hybrid Scales
Hopper Weighing
Hostile Environment
Lever Conversation

Compare
SKU: 112203 Categories: , , ,
Description

Celltec USR1 Introduction

The Celltec USR1 load cell is a versatile tool commonly used for high-sensitivity tensile weighing applications. Let’s explore its features:

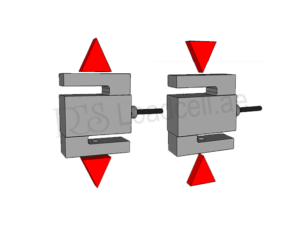

1-S-Type Design: The USR1 load cell is shaped like an “S,” making it suitable for both tension and compression measurements.
2-Precise Full Scale Output: The manufacturer carefully sets the maximum output of these load cells, ensuring minimal variation among them. This feature simplifies cornering in multi-load cell weighing systems using a junction box.
3-Stainless Steel Construction: Crafted from durable stainless steel, the USR1 load cell withstands demanding conditions.
4-IP68 Protection Rating: Dustproof and waterproof, it can be used in water-related environments.

Specifications:

1-Capacity: Ranges from 500 kg to 100 t
2-Accuracy: 0.02%
3-Overload Protection: Up to 150%
4-Operating Temperature: -40°C to +100°C
5-Protection Class: IP68

loadcell.ae Sample Celltec USR1
loadcell.ae Sample Celltec USR1 2

Installation

loadcell.ae Installation Celltec USR1

Loading

loadcell.ae loading Celltec USR1

Applications

Crane Scales Application Loadcell.ae

Various Types of hanging scales such as crane scales and hanging scales

Overhead Track Scales Application Loadcell.ae

Various Types of ceiling weighing, such as fixed and mobile ceiling crane weighing, elevator and hoist weighing, slaughterhouse and slaughterhouse ceiling weighing, and medical equipment ceiling weighing.

Tension Compression Measurements Application Loadcell.ae

Measurement of compression or tension force such as force testing device

Batching Blending Mixing Scales Application Loadcell.ae

Various types of batching and mixers weighing  for asphalt factories, concrete factories, food industries, pharmaceutical industries and petrochemical industries.

Celltec USR1 Dimensions (mm)

loadcell.ae Dimensions Celltec USR1

Wiring

Red-White-Black-Green-Wiring-LoadcellAe
Additional information
Brand

Celltec

Capacity

100kg

,

150kg

,

200kg

,

250kg

,

50kg

IP (Ingress Protection)

IP67

Class

C3

Elemental Material

Stainless Steel

Maximum Intervals

3000

Minimum Verification Interval

7500

Output Sensitivity

2.0 ± 0.01

Zero Balance

1.5

Input Resistance

350 ± 3.5

Output Resistance

350 ± 3.5

Excitation Voltage

5 ~ 15

Compensated Temperature

-10 ~+ 40

Safe Overload

150

Ultimate Overload

250

Downloads

Downloads

Celltec USR1 Datasheet
