Flintec ULB

The Flintec ULB is a rugged and reliable tension and compression load cell engineered for high-precision weighing across a broad range of industrial applications. Designed to provide outstanding performance while maintaining cost-effectiveness, the ULB offers capacities from 100 kg up to 5,000 kg, making it highly versatile for a variety of weighing and force measurement tasks.

The ULB is constructed entirely from stainless steel and environmentally sealed using a potting compound, delivering robust protection against dust and moisture according to the IP67 standard. While it is more economically sealed compared to fully hermetic models, the ULB remains an excellent choice for many indoor and protected outdoor applications.

Certified to OIML C3 standards (for tension loading only) and NTEP standards for trade applications, the ULB load cell is built to deliver accurate, repeatable measurements even under challenging conditions. It is an excellent option for users seeking a balance between cost, robustness, and performance.

The ULB load cell features a stainless steel 17-4 PH body for superior strength and corrosion resistance. It is environmentally potted rather than hermetically sealed, offering IP67 protection—suitable for environments that require good moisture resistance without full submersion.

Key features of the ULB include:

• Wide capacity range from 100 kg to 5,000 kg.

• Bi-directional loading for tension and compression measurements.

• High input resistance (1,100 ± 50 Ω) for stable and noise-resistant signals.

• Rated output of 2 ± 0.1% mV/V.

• Accurate calibration in mV/V/Ω for consistent system integration.

• Excellent linearity, hysteresis, and minimal creep error for reliable operation.

• Temperature compensated for precision performance between -10°C to +40°C (operating range -20°C to +65°C).

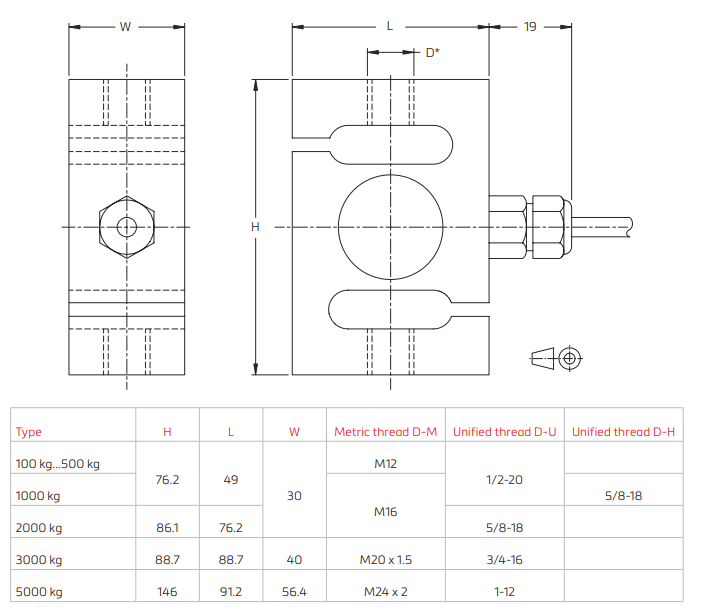

• Various thread options including metric, unified (inch), and special threads for flexible mechanical integration.

• ATEX and FM approvals for use in hazardous environments (zones 0, 1, 2, 20, 21, and 22).

• Compatible with a wide range of electronics and mounting accessories.

The ULB is calibrated and optimized for tension loading to meet OIML C3 accuracy, with a verification interval (vmin) of Emax/12,000 for trade use, ensuring precision in commercial and industrial weighing systems.
