Flintec FT-111D

The Flintec FT‑111D is a purpose‑built digital weighing indicator engineered to support modern industrial weighing systems that rely on RC3D digital load cells. Its design focuses on providing reliable measurement performance while simplifying integration with automated processes, networked environments, and precision‑driven applications such as labelling, batching, and motion‑sensitive monitoring.

Unlike conventional indicators, the FT‑111D is supplied with a dedicated LPK24 stainless-steel power and surge‑protection module, ensuring stable power delivery to digital load cells while safeguarding connected components from electrical disturbances. This architecture makes the FT‑111D well‑suited for installations where signal integrity and long‑term operational stability are essential.

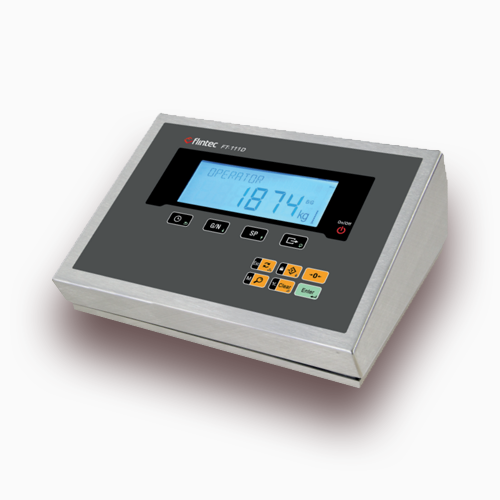

The device features a clear 6‑digit LCD display with multi‑colour backlight, enabling operators to view weight data comfortably in various lighting conditions. The stainless‑steel housing offered in both flat (wall‑mount) and tilted (desk‑mount) configurations, provides IP67 protection, giving the unit resilience in wash‑down zones and harsh industrial settings.

With support for up to 16 RC3D digital load cells, the FT‑111D is equipped for larger or more distributed weighing platforms. Its RS485‑based communication with load cells ensures reliable, noise‑immune data transfer over extended cable lengths.

Connectivity has been made flexible through a suite of optional industrial interfaces including Profibus, Profinet, CANopen, EtherCAT, Ethernet/IP, CC‑Link, Powerlink, and Modbus RTU/TCP, in addition to standard ports such as RS232C, RS485, and USB. This gives system integrators the freedom to adopt the FT‑111D in both legacy and next‑generation installations.

Users benefit from a full set of weighing functions like taring, zeroing, motion detection, automatic tare, and increased‑resolution modes supported by a 5‑step adaptive digital filter that stabilizes measurements under dynamic or vibration‑prone conditions. For traceability and process control, the unit can store weight limits and offers optional alibi memory capable of holding up to 999,999 records.

Overall, the Flintec FT‑111D delivers a dependable, digitally‑driven weighing solution that combines robust hardware, precise measurement capability, and extensive communication options. Its thoughtful design and integrated protection features make it a strong choice for industrial environments where accuracy, reliability, and digital connectivity must work hand in hand.
